【FPC/PCB低溫UV機】線路板紫外線冷光機型SK-408-700SLM

產品訂購

品牌：SunKun(三昆)

型號：SK-408-700SLM

訂購：不限數量

價格：面議

產品介紹

注意：所有FPC/PCB低溫UV機均可跟據客戶要求非標訂制，歡迎來電咨詢！

---

1、UV燈功率：6.0kw*2支、8kw*2支（鹵素燈)
2、UV燈總長：800mm、弧長：700mm
3、UV波段主波峰：365nm、385nm
4、觸摸屏人機界面控制
5、強弱光強調節:20%~100%(無級調光）
6、鈑金燈箱安裝進口插片反射器
7、采用上、下排風系統
8、輸送材料：聚四氟滾輪(耐紫外線)
9、輸送寬度：700mm
10、輸送速度：0~5m/min
11、入門高度：50mm
12、電源：380VAC 50HZ

Technical Parameters:
1, UV lamp power: 6.0kw * 2, 8kw * 2 (halogen)
2, the total length of the UV lamp: 800mm, arc length: 700mm
3, UV band main peak: 365nm, 385nm
4, touch screen man-machine interface control
5, strong and weak light intensity adjustment: 20% ~ 100% (stepless dimming)
6, sheet metal light box installation of imported insert reflector
7, using the upper and lower exhaust system
8, conveying materials: polytetrafluorometer roller (UV resistant)
9, conveying width: 700mm
10, conveying speed: 0~5m/min
11, entry height: 50mm
12, power: 380VAC 50HZ

---

主要用途：
1、用于工業FPC/PCB低溫uv機線路板光固化的領域，紫外線用于工業光固化的領域大體可分為幾大類：印刷業、塑膠行業、電子行業、燈具行業、汽車行業、工藝品行業、玻璃行業、數據線材端口UV加固，各種UV涂料、LED燈制造，鐘表裝配，固化電子元件等，該裝置體積小，重量輕，制作精良，移動方便，適用于桌面安放。不僅可以適用于電子行業，還可以用于儀表行業等。等等。

The main purpose:
1. It is used in the field of industrial FPC/PCB low-temperature UV board circuit board curing. The field of ultraviolet light used in industrial light curing can be divided into several categories: printing, plastics, electronics, lighting, automotive, and crafts. Industry, glass industry, data wire port UV reinforcement, various UV coatings, LED lamp manufacturing, watch assembly, curing electronic components, etc., the device is small in size, light in weight, well-made, easy to move, suitable for desktop placement. Not only for the electronics industry, but also for the instrument industry. and many more.

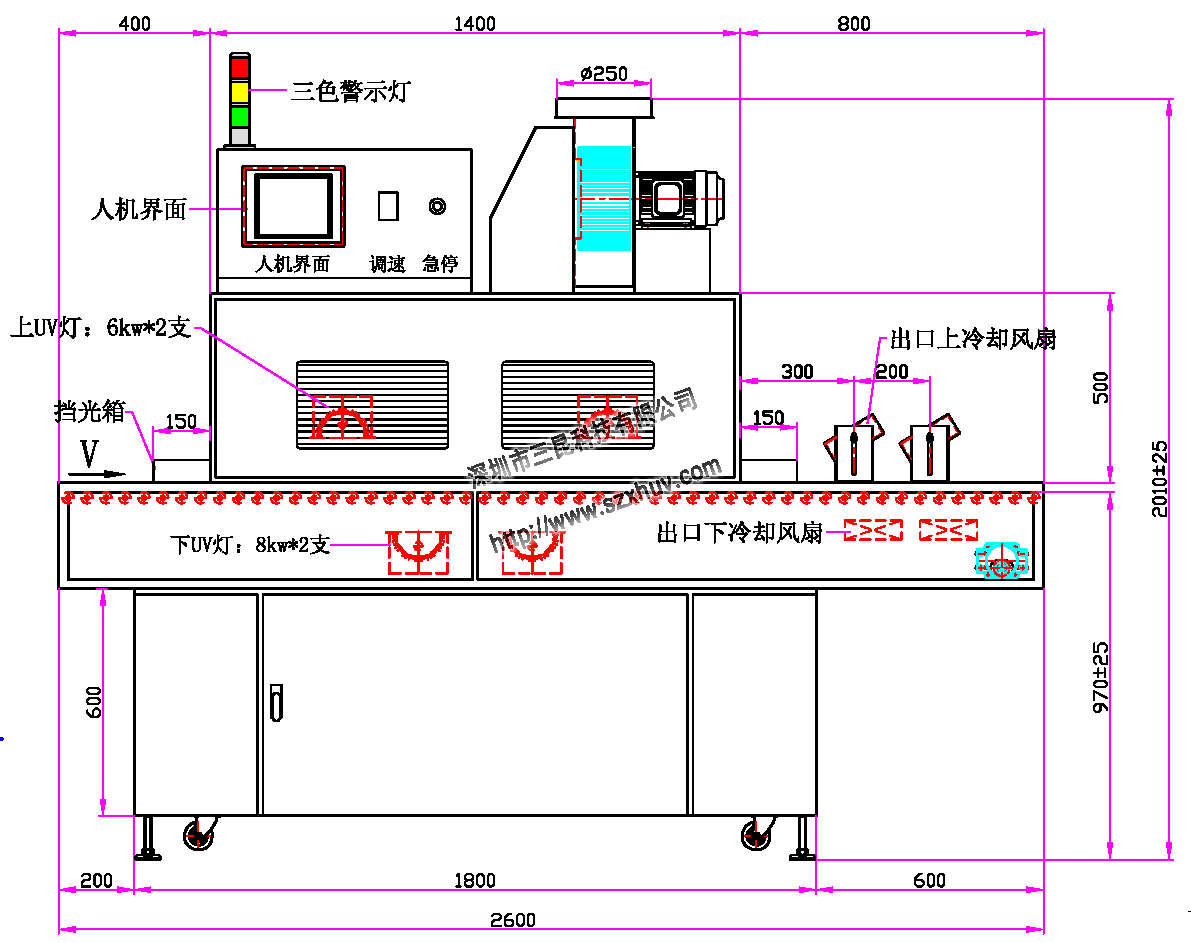

產品平面設計圖

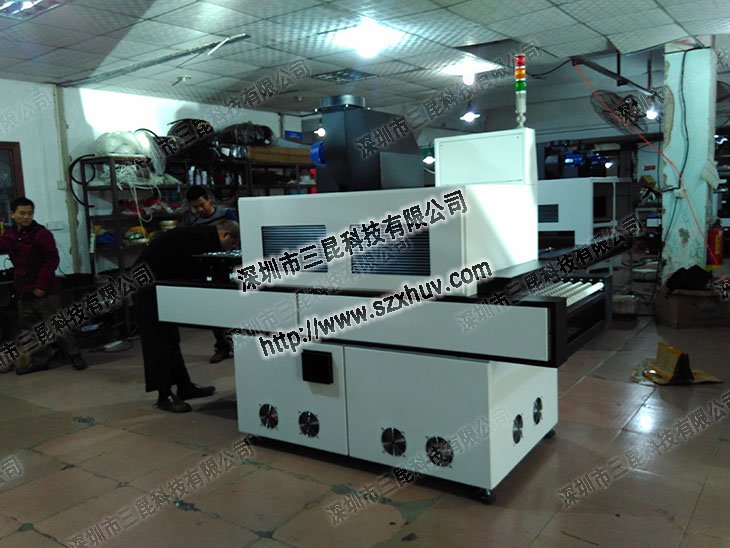

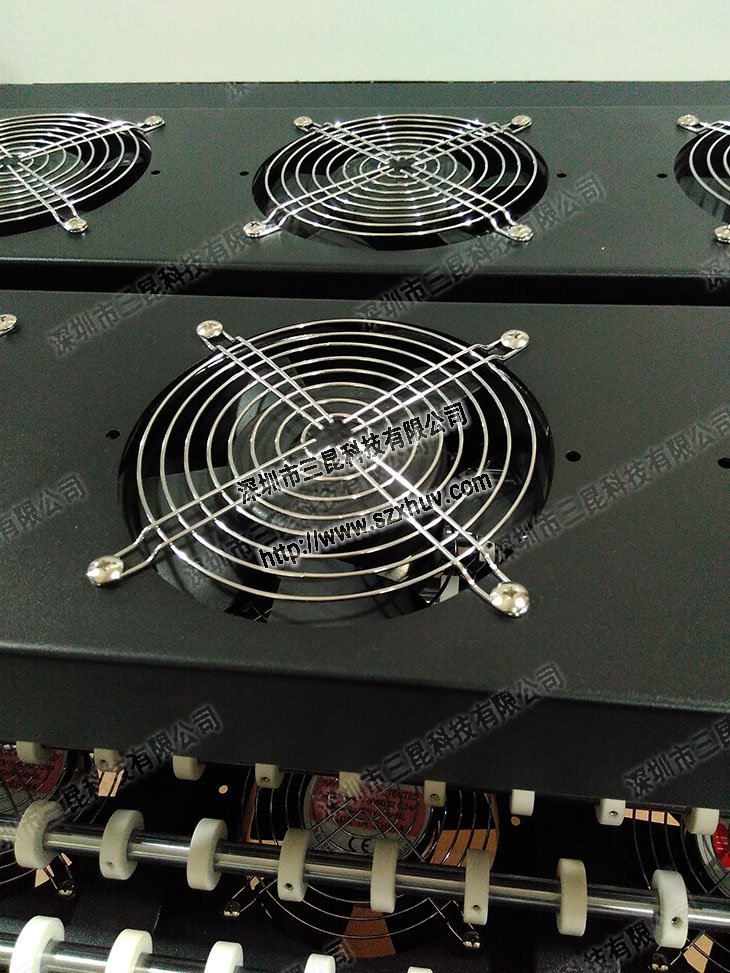

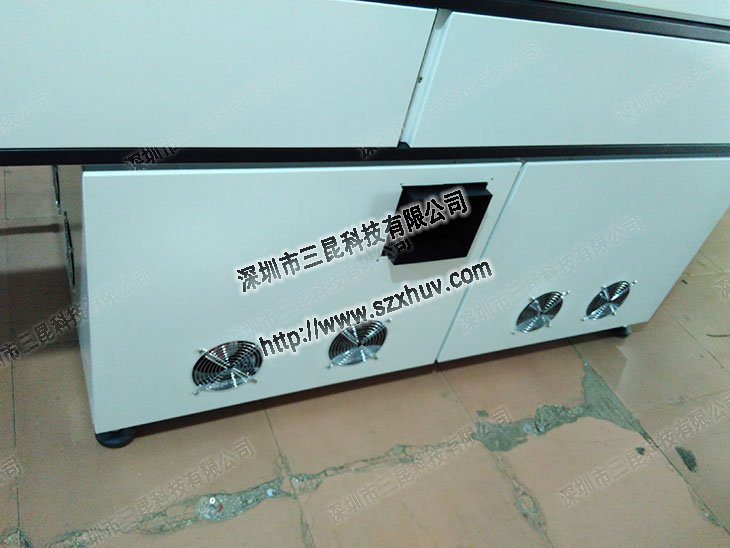

產品出貨實拍圖
